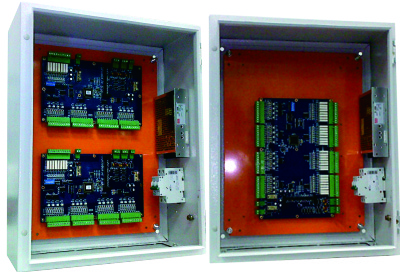

PEC-5014 Mainboard
The PEC-5014 is among the first elevator controller board in the market that incorporating a high performance digital signal processor, DSP, as its ‘brain’.
This intelligent controller is one of the rare “true compact design”, with only one printed circuit board of size 235mm by 200mm (smaller than an A4 size paper).
The technology that makes it possible is the on-board FPGA that squeeze a large chunk of electronic circuitry into a small IC, thereby reducing the cost, power consumption and component count and in the process increasing the reliability.
With a single all-in-one board, only minimal wiring is required which will greatly reduce the installation and maintenance down time.

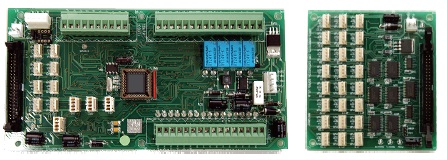

PEC-5014 Controller board works together with the SB-3121 Hall Interface Boards, SB-3234 Car Interface Board,

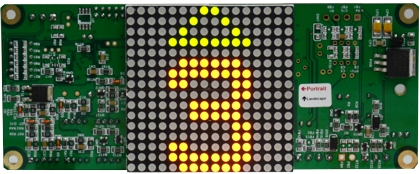

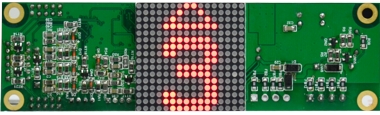

SB-1616PI Position Indicators and SB-SPEECH voice annunciator through 4-wires serial interface
This intelligent controller is one of the rare “true compact design”, with only one printed circuit board of size 235mm by 200mm (smaller than an A4 size paper).
The technology that makes it possible is the on-board FPGA that squeeze a large chunk of electronic circuitry into a small IC, thereby reducing the cost, power consumption and component count and in the process increasing the reliability.
With a single all-in-one board, only minimal wiring is required which will greatly reduce the installation and maintenance down time.
PEC-5014 Controller board works together with the SB-3121 Hall Interface Boards, SB-3234 Car Interface Board,
SB-1616PI Position Indicators and SB-SPEECH voice annunciator through 4-wires serial interface
* Compatible with VVVF (Geared and Gearless) and Hydraulic elevators.
* Up to 30 stops.
* For lifts with speeds up to 4 m/s
* Up/down collective and full collective systems
* Up to 4-car group
* Secured serial communication with car and landing units via Arcs-Link 4-wire serial bus
* Programmable inputs/outputs placed on Main and Car boards
* Support Door pre-opening and relevelling by external door bridging relays
* Store the last 50 errors with date, time and stop number enabling detailed error tracking
* 2x RS-485 serial ports, 2x Arcs-Link ports
* Fireman service and emergency operation during fire.
* SS-550 2009 Main and Alternate Floor Fireman Lift operation.
* SS-550 2009 Evacuation Lift operation.
* Include UCM protection software for implementation of EN81-1:1998+A3:2009 compliance system.
* Two settable parking stops to facilitate Up peak and Down peak operation complete with time settings
* All system parameters can be adjusted by user via buttons and LCD on the mainboard.
* Up to 30 stops.
* For lifts with speeds up to 4 m/s
* Up/down collective and full collective systems
* Up to 4-car group
* Secured serial communication with car and landing units via Arcs-Link 4-wire serial bus
* Programmable inputs/outputs placed on Main and Car boards
* Support Door pre-opening and relevelling by external door bridging relays
* Store the last 50 errors with date, time and stop number enabling detailed error tracking
* 2x RS-485 serial ports, 2x Arcs-Link ports
* Fireman service and emergency operation during fire.
* SS-550 2009 Main and Alternate Floor Fireman Lift operation.
* SS-550 2009 Evacuation Lift operation.
* Include UCM protection software for implementation of EN81-1:1998+A3:2009 compliance system.
* Two settable parking stops to facilitate Up peak and Down peak operation complete with time settings
* All system parameters can be adjusted by user via buttons and LCD on the mainboard.
PEC-3079 Mainboard
The PEC-3079 is a multi-wires system that is a budgetary alternative to the PEC-5014 series.
Like the PEC-5014 series, this intelligent controller is one of the rare “true compact design”, with only one printed circuit board.
It has all the I/Os for a maximum 10-stops control.
Ideal for retro-fit solution where all I/Os is already present at the controller cabinet.
Like the PEC-5014 series, this intelligent controller is one of the rare “true compact design”, with only one printed circuit board.
It has all the I/Os for a maximum 10-stops control.
Ideal for retro-fit solution where all I/Os is already present at the controller cabinet.
* Compatible with VVVF (Geared and Gearless) and Hydraulic elevators.
* Up to 10 stops.
* For lifts with speeds up to 2.5 m/s
* Up/down collective and full collective systems
* Up to 4-car group
* Programmable inputs/outputs placed on Main and Car boards
* Store the last 50 errors with date, time and stop number enabling detailed error tracking
* 2x RS-485 serial ports
* Fireman service and emergency operation during fire.
* SS-550 2009 Main and Alternate Floor Fireman Lift operation.
* SS-550 2009 Evacuation Lift operation.
* Include UCM protection software for implementation of EN81-1:1998+A3:2009 compliance system.
* All system parameters can be adjusted by user via buttons using external LCD Keypad
* Up to 10 stops.
* For lifts with speeds up to 2.5 m/s
* Up/down collective and full collective systems
* Up to 4-car group
* Programmable inputs/outputs placed on Main and Car boards
* Store the last 50 errors with date, time and stop number enabling detailed error tracking
* 2x RS-485 serial ports
* Fireman service and emergency operation during fire.
* SS-550 2009 Main and Alternate Floor Fireman Lift operation.
* SS-550 2009 Evacuation Lift operation.
* Include UCM protection software for implementation of EN81-1:1998+A3:2009 compliance system.
* All system parameters can be adjusted by user via buttons using external LCD Keypad
